Machine

KWS 8030H44*12T PCD edge banding pre milling cutters for edge bander

Machine:Edge Banding Machine
Application:MDF,Chipboard,Multi layer board
Design:Oblique blade design,Avoid bursting
Advantage:Good performance on Chip removal, Endurable, Low noise
Remark:ODM/OEM supported

Inquire Now Add to Cart

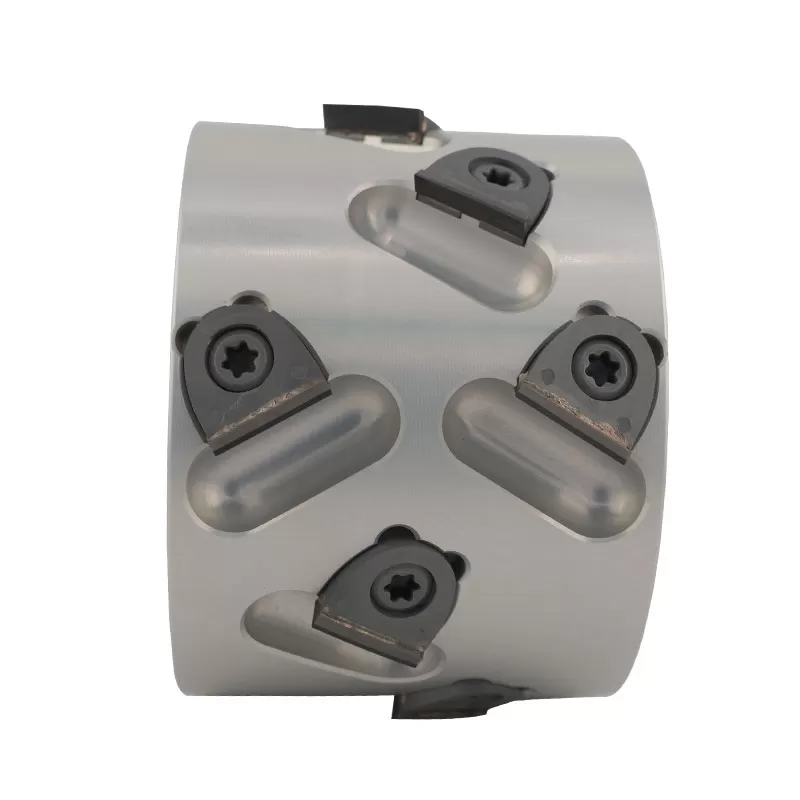

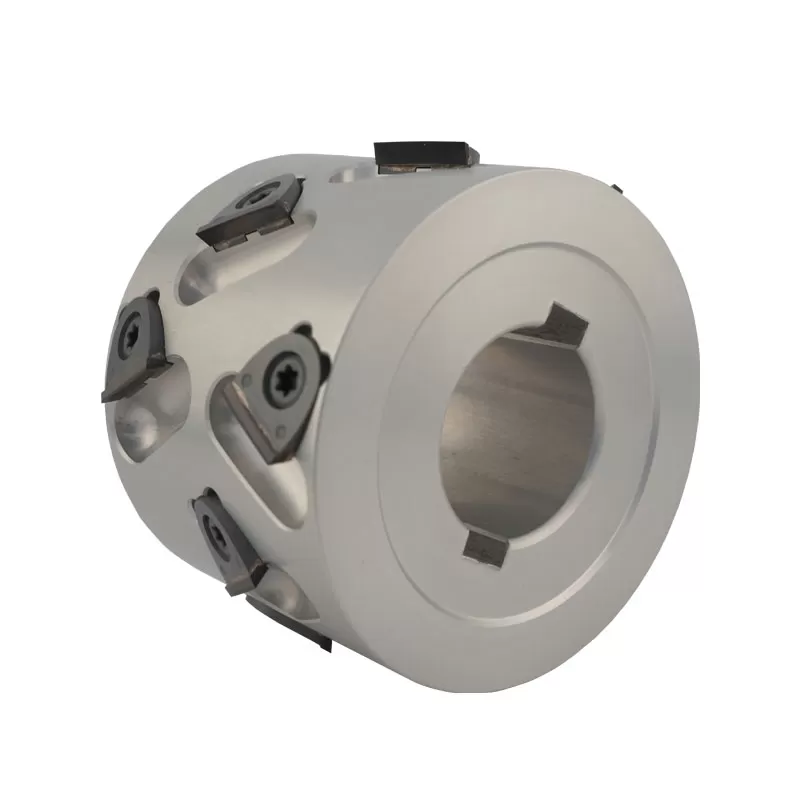

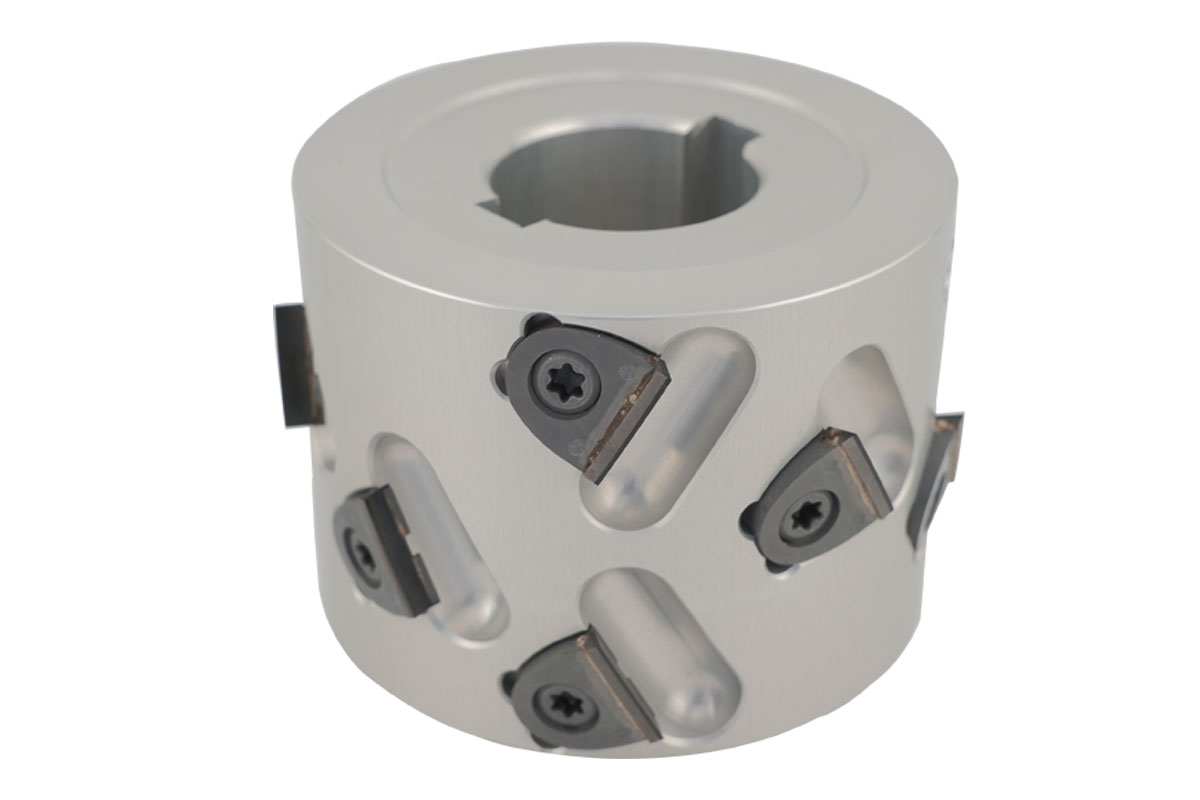

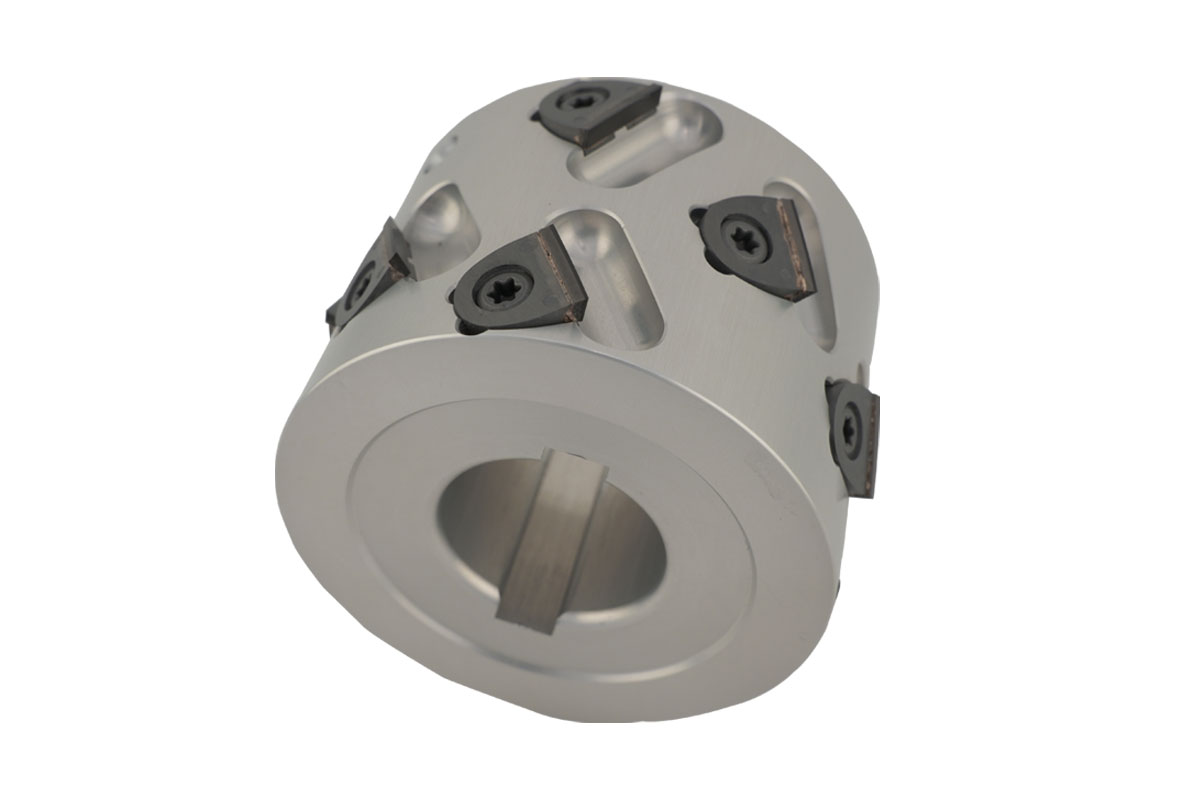

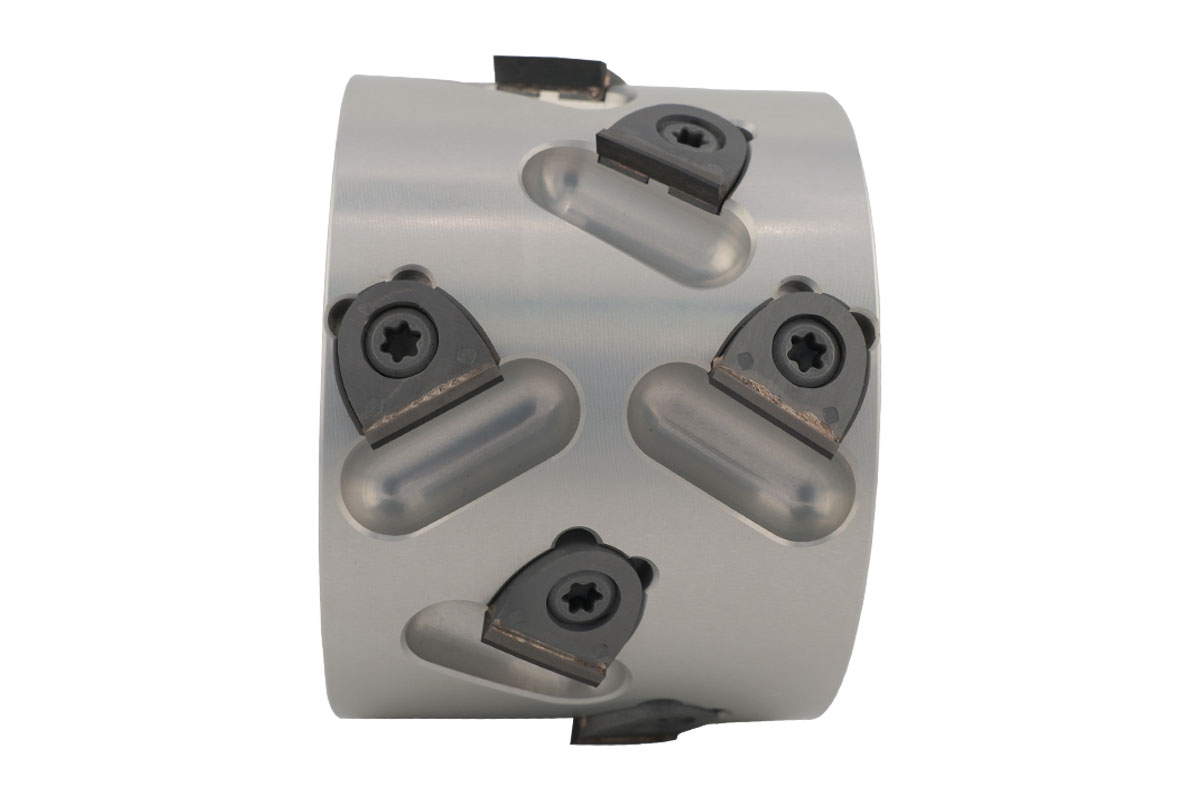

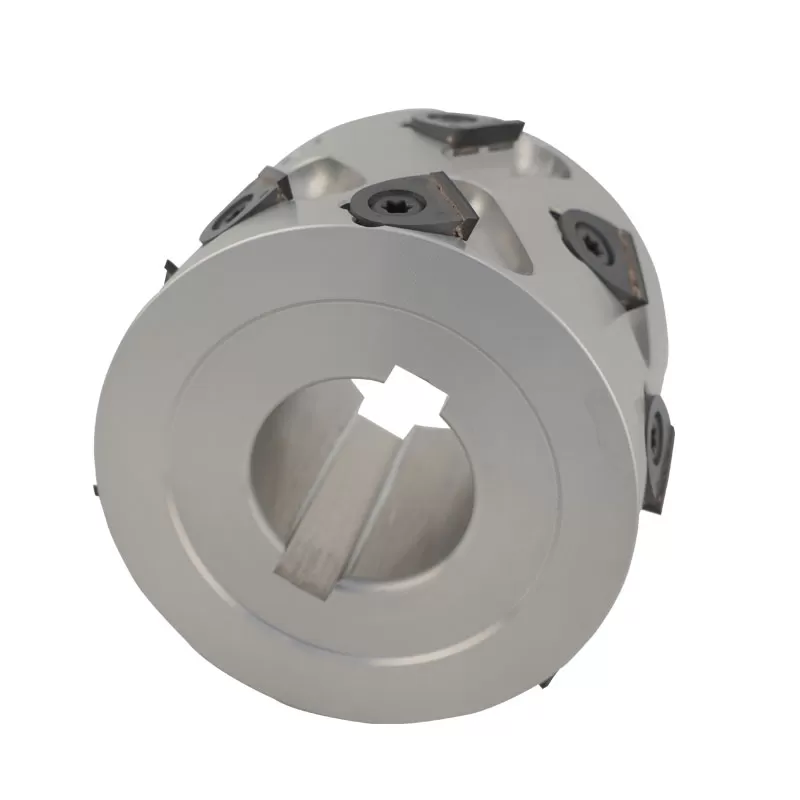

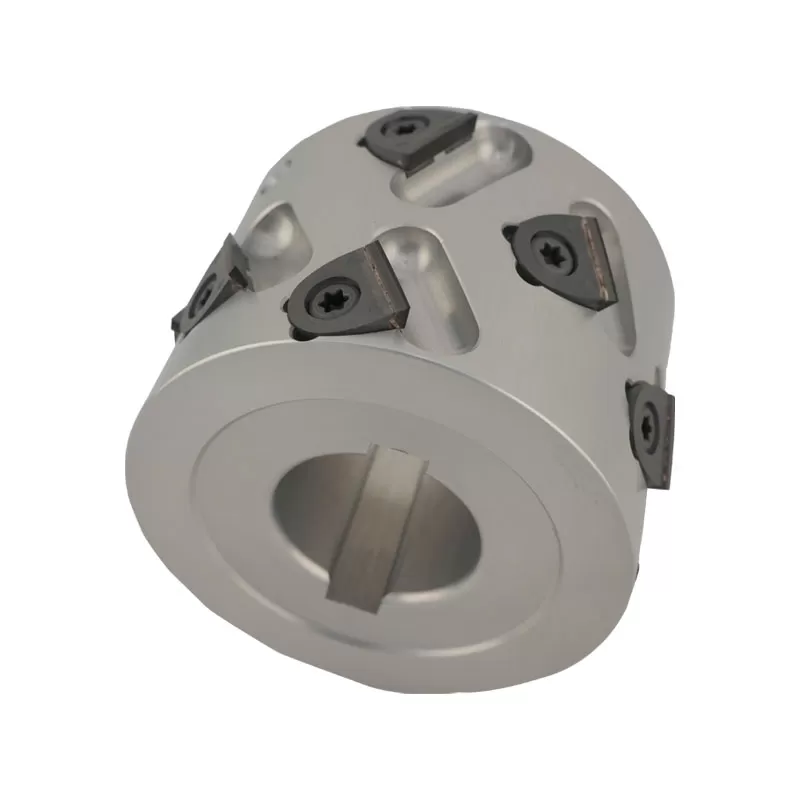

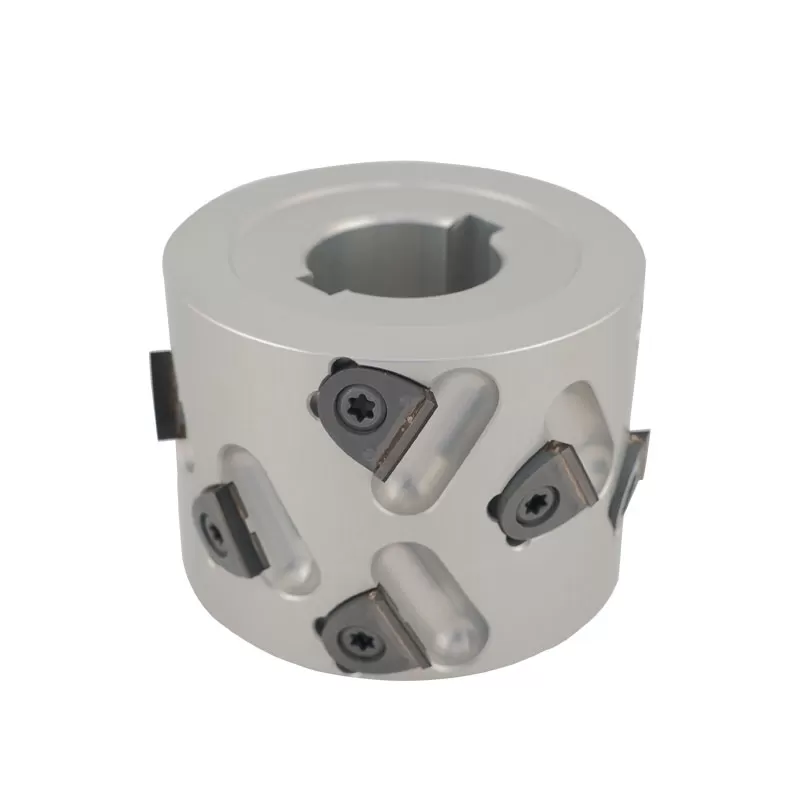

KWS 80*30*H44*12T PCD edge banding pre milling cutters for edge bander

PCD Pre-milling Cutter
No.	OD	ID	Height	Z	H	Angle
1	80	20	50	15	2L
2	80	20	50	15	2R
3	100	30	48	15	1L
4	100	30	48	15	1R
5	100	30	48	15	2L
6	100	30	48	15	2R
7	125	30	35	6	1
8	125	30	35	6	2
9	125	30	35	12	1
10	125	30	35	12	2
11	125	30	40	9	1L
12	125	30	40	9	1R
13	125	30	40	9	2L
14	125	30	40	9	2R
15	125	30	65	15	1L
16	125	30	65	15	1R
17	125	30	65	15	2L
18	125	30	65	15	2R
19	125	30	65	18	1L
20	125	30	65	18	1R
21	125	30	65	18	2L
22	125	30	65	18	2R
23	150	30	35	8	1
24	150	30	35	8	2
25	150	30	65	15	1L
26	150	30	65	15	1R
27	150	30	65	15	2L
28	150	30	65	15	2R
29	150	30	65	18	1L
30	150	30	65	18	1R
31	150	30	65	18	2L	55°
32	125	30	35	20	2L	55°
33	125	30	35	20	2R	55°
34	125	30	40/43	20	2L	55°
35	125	30	40/43	20	2R	55°
36	125	30	40/43	30	2L	55°
37	125	30	40/43	30	2R
