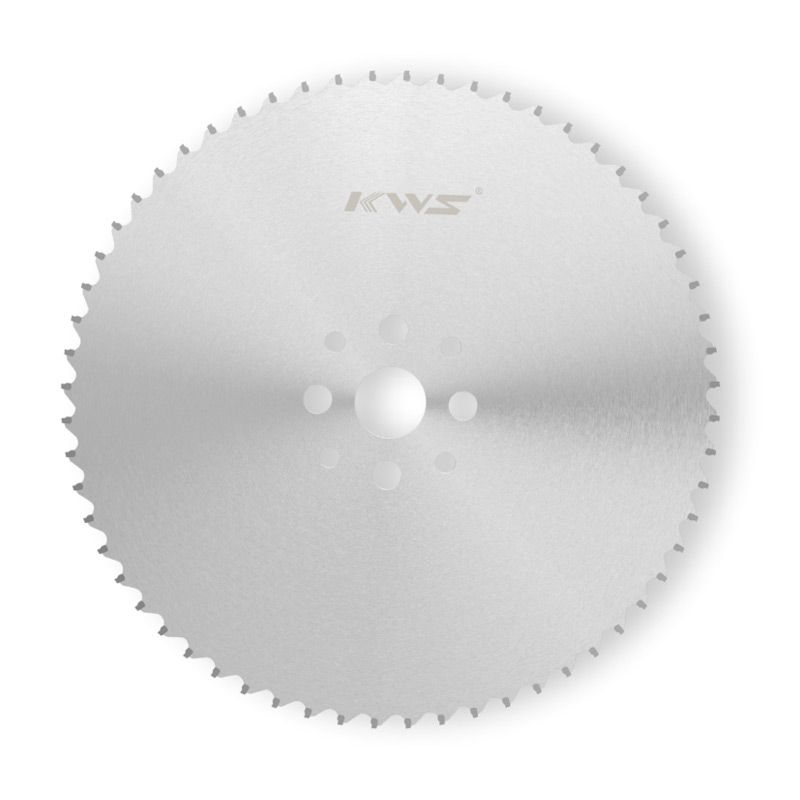

Cold Saw for High Carbon Steel Cutting

Cold Saw for High Carbon Steel Cutting

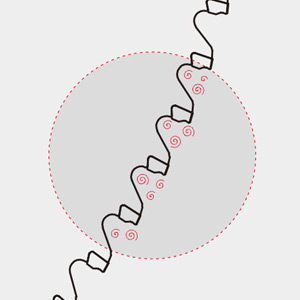

·Teeth Shape·

Cold Saw for High Carbon Steel Cutting

·Characteristics·

1. Customized steel plate with rare alloy

2. Cermet alloy teeth

3. Special angle design

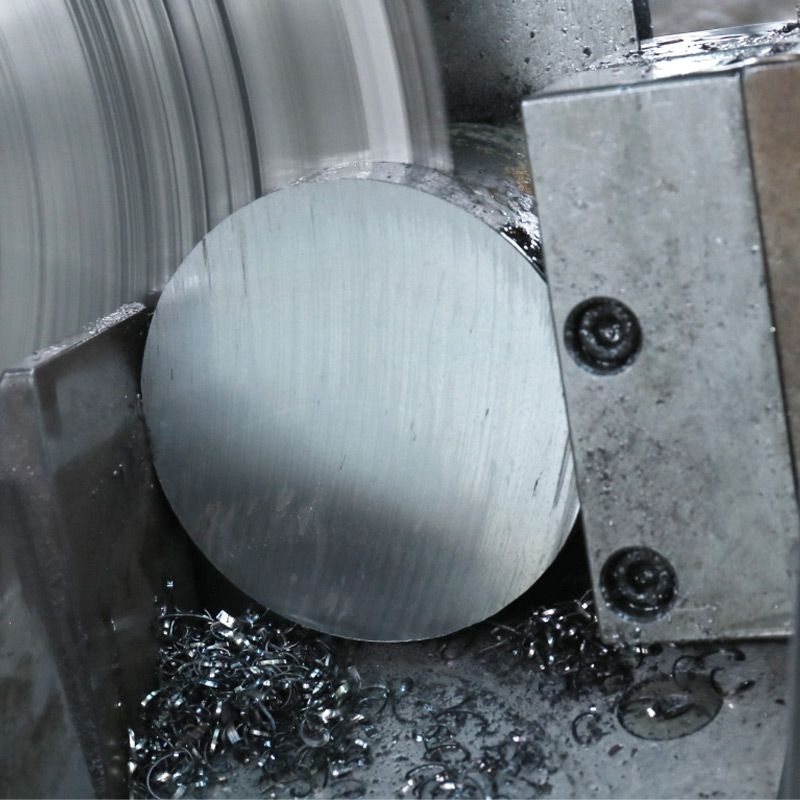

4. Perfect straight cutting Mirror surface

5. Durable

Inquire Now Add to Cart

Production Information

Application	For high carbon steel cutting
Equipment	High precise cold saw machine
RPM	V=70-100m/min
The amount of cut per tooth	Bar FZ=0.04-0.07 Tube FZ=0.03-0.06
Material	C≤0.75% Carbon steel, Alloy steel
Tips	Cermet alloy
Features	1. Customized steel plate with rare alloy 2. Cermet alloy teeth 3. Special angle design 4. Perfect straight cutting Mirror surface 5. Durable

Cutting Amount and Cutting Speed

■ Cutting Amount Per Tooth(fz)

Fz (mm/blade)=F/N*Z

Fz: The amount of cut per tooth

F: Feed speed (mm/min)

N: Equipment spindle speed (rpm)

Z: Number of teeth

■ Recommended Parameters

Bar Fz=0.04~0.07 (mm/blade)

Pipe Fz=0.03~0.05 (mm/blade)

■ Cutting Speed (Saw Blade Line Speed) (v)

V(m/min)=π*D*N/1000

V: Cutting line speed (m/min)

D: Outer diameter (mm)

N: Equipment spindle speed (rpm)

■ Recommended Parameters

Medium and low carbon steel V=100~130 (m/min)

High carbon, alloy steel V=70~100 (m/min)

Speciﬁcation

Pin Hole/pin Hole	Bore
4/9/50, 4/11/63	32.00
4/11/63, 4/11/90, 2/12/65, 2/15/80	40.00
4/11/90, 4/16/80, 4/21/90	50.00

Cold Saw for High Carbon Steel Cutting

Stock: Yes No

No.	D	d	B	Z	Type
1	285	32	2	120	285322.0*120
2	315	32	2.25	60	315322.25*60
3	315	32	2.25	72	315322.25*72
4	315	32	2.25	80	315322.25*80
5	315	32	2.25	100	315322.25*100
6	315	32	2.25	120	315322.25*120
7	315	32	2.25	140	315322.25*140
8	360	40	2.6	60	360402.6*60
9	360	40	2.6	72	360402.6*72
10	360	40	2.6	80	360402.6*80
11	360	40	2.6	100	360402.6*100
12	360	40	2.6	120	360402.6*120
13	380	40	2.6	60	380402.6*60
14	380	40	2.6	72	380402.6*72
15	380	40	2.6	80	380402.6*80
16	380	40	2.6	100	380402.6*100
17	400	50	2.7	50	400502.7*50
18	400	50	2.7	60	400502.7*60
19	400	50	2.7	80	400502.7*80
20	400	50	2.7	100	400502.7*100
21	425	50	2.7	40	425502.7*40
22	425	50	2.7	60	425502.7*60
23	425	50	2.7	80	425502.7*80
24	425	50	2.7	100	425502.7*100
25	460	50	2.7	40	460502.7*40
26	460	50	2.7	60	460502.7*60
27	460	50	2.7	72	460502.7*72
28	460	50	2.7	80	460502.7*80
29	460	50	2.7	100	460502.7*100
30	460	50	2.7	120	460502.7*120
31	458	50	2.7	60	485502.7*60
32	485	50	2.7	72	485502.7*72
33	485	50	2.7	80	485502.7*80
34	485	50	2.7	100	485502.7*100
35	520	50	3	60	520503.0*60
36	520	50	3	72	520503.0*72
37	520	50	3	80	520503.0*80
38	560	50	3	60	560503.0*60
39	630	80	3.4	60	630803.4*60
40	630	80	3.4	72	630803.4*72
41	630	80	3.4	80	630803.4*80
42	630	80	3.4	100	630803.4*100
